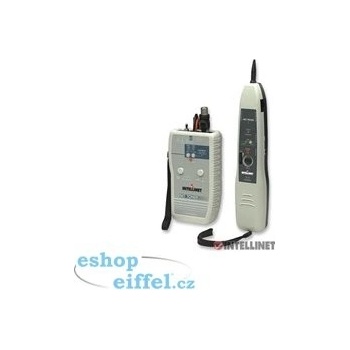

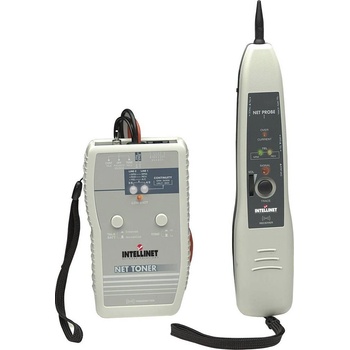

Intellinet Cable Tester, Net Toner and Probe Kit, Tone Generator, RJ45, RJ12

Net Toner and Probe Kit

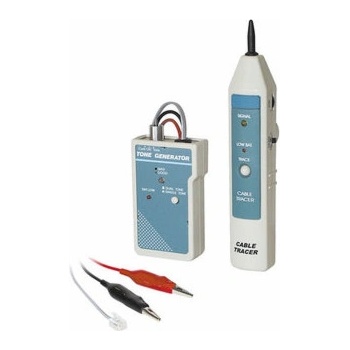

Tone Generator [515566]

• Tests datacom, telecom, security, video, and audio networks
• Two position switch for single or multi-tone signal
• LEDs for line polarity, continuity and voltage
• Enhanced talk battery mode provides power for voice communications over inactive pairs
• Testing leads and modular cables for individual wire tests or modular jack tests
• Replaceable plastic tip to prevent accidental shorts
• Trace or identify wire or cables in a bundle or group
• Alligator clips, RJ45 jack, RJ12 plug, optional F-connector

Color •Beige

Specifications

• Net Toner
• Toner Frequency: High alternating 500-781 Hz ; Low alternating 446-657 Hz
• Talk Battery: 9V into a 600 ohms circuit
• Voltage protection: 50 VDC or 24 VAC
• Battery: 9V DC standard or alkaline
• CE Approved: EN 55022 Class B for ITE and EN 55024
• Size: 125 (L) x 68 (W) x 26 (H) mm (4.9 x 2.7 x 1.2 in.)
• Weight: 120g (.37 lb)

Net Probe

• Gain: 30 db
• Tip resistance: 30 ohms (Plastic tip)
• Battery: 9V DC standard or alkaline
• CE Approved: EN 55022 Class B for ITE and EN 55024
• Size: 210 (L) x 40 (W) x 28 (H) mm (8.1 x 1.6 x 1 in.)
• Weight: 140g (.30 lb)

Environmental: •Operating temperature: 0 – 40°C (32 – 104°F)

Package Contents

• Net Probe
• Net Toner w/ Alligator clips and RJ-12 connector
• Female F-connector to RJ-45 adapter
• Carrying pouch
• User Manual
